Lenticular filter cartridges play a crucial role in modern industrial filtration, and their popularity continues to rise across industries like beverages, pharmaceuticals, chemicals, and water treatment. If you’ve ever wondered why these filters are used so widely, the answer lies in their incredibly efficient design and ability to deliver high-quality filtration without demanding huge space or constant maintenance. Think of them as the “smart evolution” of traditional filter cartridges—more capacity, more convenience, and far better control over clarity and purity. Unlike disposable cartridges that clog quickly and require frequent replacement, lenticular filters are engineered to handle large particle loads while maintaining consistent flow.

What makes lenticular filters especially valuable is their closed system design. This means filtration occurs inside a sealed housing, preventing contamination, product exposure, or messy cleanup. For industries that depend on strict hygiene standards—like pharmaceuticals and food production—this is a game changer. It protects both the product and the operators, eliminating the risks associated with open filtration systems such as plate-and-frame filters. Another reason these filters stand out is their ease of use. Instead of wrestling with multiple filter sheets or dealing with complicated setups, operators simply drop in a lenticular module and seal the housing. It’s clean, quick, and efficient.

The global shift toward high-purity manufacturing has pushed lenticular filtering technology into the spotlight. Companies want consistent results with the lowest possible downtime, and these filters deliver exactly that. They are built to offer repeatable filtration performance, whether you’re clarifying wine, polishing chemicals, or producing sterile pharmaceutical ingredients. As processing operations grow more automated and specialized, lenticular filters have become the preferred choice thanks to their versatility and adaptability. They fit effortlessly into existing pipelines, scale smoothly with production needs, and provide industry-grade filtration without overcomplicating workflow.

What Is a Lenticular Filter Cartridge?

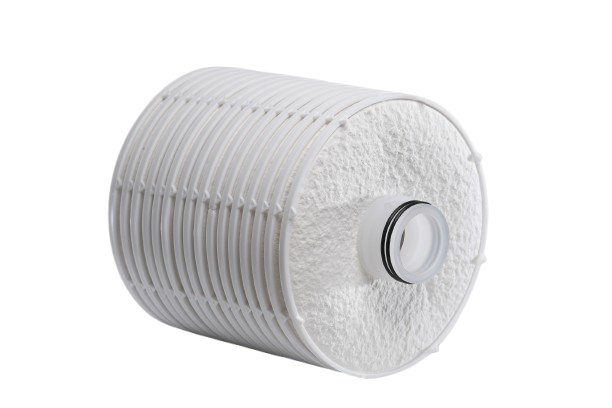

A lenticular filter cartridge is a specialty filtration device designed to remove contaminants through depth filtration while maximizing surface area in a compact, enclosed form. The term “lenticular” comes from its lens-shaped modules that stack vertically to form a multi-layer structure capable of holding a significant amount of debris without clogging quickly. Imagine a stack of thin, round pillows, each one containing filtration media with tiny pathways that trap particulates—this is essentially how a lenticular filter is built. The unique geometry allows fluids to pass through multiple layers of media, capturing both visible and microscopic contaminants along the way.

Unlike traditional pleated filters, which primarily rely on surface filtration, lenticular filters work through depth filtration, meaning particles become trapped throughout the entire thickness of the media, not just on the surface. This results in higher dirt-holding capacity, longer filter life, and fewer interruptions during processing. The filtration mechanism also provides better retention of fine particles, colloids, and haze-forming materials, which is why these filters are so popular in beverage industries like craft brewing and winemaking. They help achieve clarity without stripping flavor or altering the final product.

One of the reasons these filters are heavily preferred in modern processing environments is their closed system nature. Everything happens inside a sealed housing, which ensures hygiene and prevents external contamination. This feature is incredibly important for industries like pharmaceuticals, where sterility is a strict requirement. A lenticular filter allows operators to maintain high purity without exposing the product to air or manual handling. The ease of installation and replacement also makes these cartridges attractive for facilities looking to improve operational efficiency. Swapping out a module takes minutes, saving valuable production time.

When you break down their functionality, lenticular filter cartridges combine efficiency, safety, and simplicity. They are designed to handle fluids with high turbidity, making them a practical choice for processes that involve heavy particulate loads. Whether you’re working with wine filled with natural sediments or chemicals with high solids, lenticular filters maintain consistent performance without the need for constant monitoring. This blend of high capacity and low maintenance makes them one of the most reliable filtration solutions in industrial applications today.

How Lenticular Filter Cartridges Work

To appreciate how lenticular filters operate, it helps to visualize the internal flow path and filtration process. When fluid enters the housing, it spreads across the surface of the lenticular module. Each module contains multiple “cells,” which are essentially circular chambers lined with depth filtration media. The fluid flows through these media layers, and contaminants are captured as the liquid moves through tiny pores and pathways created by the dense fibrous structure.

Depth filtration relies on multiple mechanisms working together: mechanical sieving, adsorption, and electrostatic attraction. Mechanical sieving occurs when particles are too large to pass through the pores. Adsorption happens when smaller contaminants adhere to the surface of fibers inside the media. Electrostatic attraction captures particles based on charge differences. The result? A filtration process capable of removing a wide range of impurities—from large sediment particles to microscopic hazes and even some microorganisms.

One of the biggest advantages of lenticular filtration is the low pressure drop relative to its capacity. Because the media is arranged in a three-dimensional structure, the filter can hold large amounts of debris before pressure begins to rise significantly. This allows facilities to run longer production cycles without stopping for change-outs. The large surface area of each module also contributes to stable flow rates, even when handling viscous or particle-heavy fluids.

Lenticular filters are also engineered to prevent common problems faced by flat-sheet or pleated filters. For example, the design minimizes channeling, which occurs when fluid finds a low-resistance path and bypasses part of the media. It also prevents cake buildup on the surface, as particles are distributed throughout the media instead of forming a thick layer on top. This gives lenticular filters more consistent performance and extends their usable life.

Ultimately, the working principle of a lenticular filter is built around one simple idea: maximize filtration efficiency while minimizing maintenance. The combination of depth media, sealed housing, and modular design makes these filters effective, predictable, and ideal for industries where cleanliness and consistency are non-negotiable.

Design and Construction

A lenticular filter cartridge may look simple from the outside, but its internal design is the result of precise engineering. Each module typically consists of stacked filtration cells, which are thin discs made from depth media that are molded or bonded together. These cells are arranged between support plates that help maintain structure and ensure even flow distribution. When multiple modules are stacked vertically, they form a multi-stage filtration unit capable of handling demanding industrial processes.

The depth media inside the cells is the core of the system. It contains fibers, pores, and pathways that trap contaminants at various depths. The density of the media determines the micron rating, which can range from coarse clarification to fine polishing. Some modules also combine depth media with membrane layers to provide absolute-rated filtration suitable for sterile applications. This hybrid design allows manufacturers to achieve the required purity without installing separate filtration stages.

Structural integrity is maintained by inner and outer support cores, which prevent collapse when exposed to high differential pressures. These cores are typically made from polypropylene or stainless steel, depending on the intended application. The external housing plays an equally important role, sealing the system and ensuring hygienic processing. Housings may be single-round or multi-round, accommodating anywhere from one module to dozens of them.

The sealing components—gaskets, O-rings, and endcaps—ensure leak-free operation. They are usually made from EPDM, silicone, Viton, or other elastomers depending on chemical compatibility. These small parts are critical, as improper sealing can lead to bypass, contamination, or system failure.

The entire system is designed for easy assembly and disassembly. Operators can remove old modules, clean the housing, and install new ones within minutes. This reduces downtime, enhances productivity, and helps maintain consistent product quality regardless of the application.

Materials Used in Lenticular Filter Cartridges

The materials used in lenticular filter cartridges determine their performance, chemical compatibility, durability, and filtration efficiency. While most people only notice the outer module, the true power of a lenticular filter lies in the internal media. The most common material is cellulose, a natural fiber that offers excellent filtration depth and fiber bonding. Cellulose is widely used because it’s affordable, effective, and capable of capturing a diverse range of particles. However, cellulose alone does not always meet the needs of industries that work with aggressive chemicals or require microbial retention, which is why manufacturers enhance cellulose media with other filtration layers.

Another widely used material is diatomaceous earth (DE). DE is a fossilized algae compound with a highly porous structure, making it exceptional for trapping fine particles and haze. When blended into cellulose, DE creates a media with superior clarification ability. This combination is particularly useful in industries like wine, beer, and edible oils, where clarity and low turbidity are priorities. Resin bonding is also incorporated to increase media strength and avoid fiber release during filtration, ensuring a stable structure under pressure.

In high-purity or chemically demanding environments, synthetic fibers and polymer-based media come into play. Polypropylene, polyethersulfone, and polyester-based layers offer enhanced chemical resistance, temperature stability, and microbial filtration. Some lenticular filters also include membrane layers, transforming them into sterilizing-grade cartridges capable of removing bacteria and microorganisms. These hybrid media systems allow manufacturers to combine depth filtration with absolute pore-size control in a single module.

The choice of media depends entirely on the application. For example, beverage manufacturers prioritize taste neutrality, so they use cellulose-DE blends. Pharmaceutical processors require low extractables and sterilizing capability, so they use synthetic or membrane-enhanced media. Chemical plants rely on resin-bonded media with high chemical resistance. By tailoring the media composition, lenticular filter cartridges achieve unmatched flexibility across industries.

Types of Lenticular Filter Cartridges

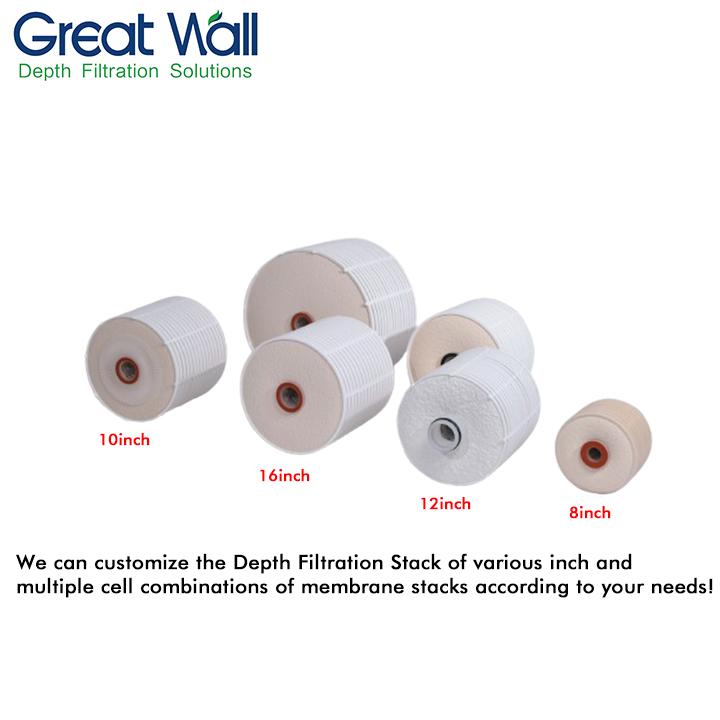

Lenticular filter cartridges come in multiple types, each designed to address specific filtration challenges. The most common type is the standard depth media module, which uses cellulose-based or blended media to provide reliable particle retention across a broad micron range. These modules excel at clarification and sediment removal, making them ideal for food, beverage, and general industrial use.

Another category is graded-density lenticular modules. These filters incorporate depth media that changes in density from the outer layers to the inner layers. The outer zones capture larger particles while the inner zones trap finer ones, creating a multi-stage filtration effect inside a single module. This increases dirt-holding capacity and extends service life while maintaining stable flow rates even under heavy particle loads.

For applications requiring microbial removal or sterile operation, sterilizing-grade lenticular cartridges are used. These modules often combine depth media with membrane layers such as polyethersulfone (PES). The membrane provides absolute-rated filtration, ensuring bacteria, spores, and micro-particles are removed effectively. Pharmaceuticals, biotechnology, and medical device manufacturers rely heavily on these types.

Some manufacturers also offer activated carbon lenticular modules, which incorporate carbon-based media to remove odors, colors, and organic impurities. These are widely used in water treatment, edible oil refining, and chemical purification processes.

Advantages of Lenticular Filter Cartridges

Lenticular filter cartridges offer several benefits that traditional cartridge or sheet filters cannot match. The biggest advantage is their high dirt-holding capacity. Thanks to layered depth media, these filters capture contaminants throughout their entire structure instead of only on the surface. This dramatically reduces clogging and extends operational cycles.

Another major benefit is the closed filtration system, which ensures hygienic processing, reduces contamination risk, and eliminates messy cleanup. This is crucial in beverage and pharmaceutical industries where strict sterility and safety standards apply. Lenticular filters also provide exceptional ease of handling—modules can be installed or replaced within minutes, reducing downtime and labor cost.

Their scalability is another strength. Need more filtration capacity? Simply add more modules to the housing. This modular approach lets businesses increase output without redesigning their entire system. Lenticular filters also offer superior flow rates, consistent performance, and efficient filtration of both high- and low-turbidity fluids.

Lenticular vs. Traditional Cartridge Filters

Compared to standard pleated cartridge filters, lenticular filters offer much higher capacity and longer lifespans. Traditional cartridges clog quickly when exposed to heavy sediment or viscous fluids, while lenticular modules handle large solids loads with ease. Where pleated filters rely mostly on surface area, lenticular filters utilize depth media, capturing particles throughout multiple layers for more efficient filtration.

Maintenance and change-outs are also easier with lenticular systems. Instead of replacing multiple cartridges, operators typically replace one lenticular module. The closed design prevents product exposure, unlike some cartridge systems that require manual handling. Although lenticular filters have a higher upfront cost, their overall lifecycle cost is significantly lower due to fewer replacements and reduced labor.

Common Industrial Applications

Lenticular filter cartridges are used in industries where clarity, purity, and consistency are essential. In the food and beverage industry, they are indispensable for filtering beer, wine, spirits, juices, and edible oils. Their ability to reduce haze without affecting flavor makes them ideal for quality-sensitive products.

In pharmaceuticals, lenticular filters are used for vaccine processing, serum clarification, sterile ingredient production, and buffer solution preparation. Their closed system ensures aseptic operation. The chemical industry uses them for purifying solvents, removing catalyst residues, and clarifying polymers. Water treatment plants rely on them for polishing water, removing organics, and preparing high-purity water. Cosmetics manufacturers use lenticular filters to clarify oils, lotions, fragrances, and emulsions.

Choosing the Right Lenticular Filter Cartridge

Selecting the right cartridge starts with defining the micron rating, which determines the filtration fineness. Coarse grades (10–30 microns) are ideal for pre-filtration, while fine grades (0.2–1 micron) are typically used for polishing or sterile filtering. The flow rate is equally important; selecting a module that matches your production speed ensures consistent performance without exceeding pressure limits.

Chemical compatibility should always be evaluated. Some fluids require synthetic media or specialized gaskets such as Viton or EPDM. Understanding your particle load helps determine whether a single module is sufficient or if multiple stages are needed. The final consideration is the housing design, which must match the module diameter, height, and sealing method.

Installation and Setup

Installing a lenticular filter is straightforward. Start by preparing the housing and ensuring all sealing surfaces are clean. The module is then aligned with the support rods and lowered into the housing. Once the module locks into place, the top cover is sealed with gaskets or clamps. After confirming all valves are properly aligned, the system is flushed to remove air and ensure even flow distribution.

Safety measures include wearing gloves, ensuring proper pressure relief, and following recommended torque settings. Once installed, the system operates efficiently with minimal supervision.

Maintenance and Operating Tips

Troubleshooting Common Problems

Future Trends in Lenticular Filtration

Conclusion

FAQs

What makes lenticular filters better than pleated cartridges?
