WRB Series Spirally Wrapped Phenolic Resin Filter Cartridges
WRB Series Spirally Wrapped Phenolic Resin Filter Cartridges
WRB Series phenolic resin filter cartridges excel in filtration efficiency due to a unique manufacturing process, establishing a rigid structure with graded porosity. This design captures coarser particles near the surface and finer particles toward the core. The graded porosity structure reduces bypass and eliminates the unloading characteristics seen in soft and easily deformable competitive melt-blown and string-wound filter cartridges.

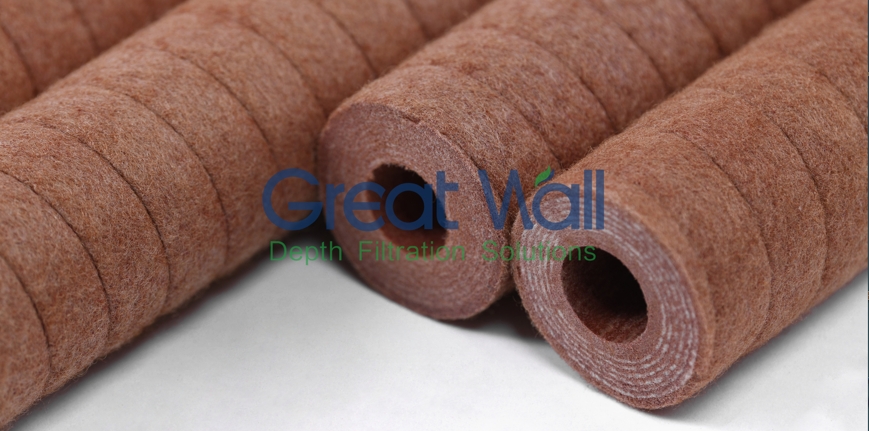

WRB series cartridges, constructed with polyester fibers and phenolic resin, excels in durability and resilience, withstanding extremes without compression. A spiral-wrapped prefilter exterior, crafted from a blend of polyester and special fibers, enhances the strength of the cartridge while eliminating leftover debris commonly associated with traditional or machined and grooved resin-bonded cartridges.
These filters deliver a unique, durable, and high-performance solution for demanding applications, ensuring exceptional chemical and heat resistivity. This makes the WRB series ideal for a range of challenging conditions, including high-temperature, high-viscosity, and high-pressure applications like paints and coatings.
Please refer to the application guide for additional information.
Phenolic Resin Bonded Filter Cartridge Feature and Benefit
Broad chemical compatibility:
Rigid construction makes it ideal for high viscosity chemical liquid filtration and chemically aggressive applications, offering solvent resistance, corrosion resistance, and broad chemical compatibility.
Ideal for high flow and high temperature applications:
No deformation in high-flow, high-temperature conditions, excelling with solvent-based liquids and high-viscosity fluids, regardless of temperature, pressure, or viscosity levels.
Graded porosity structure:
Ensuring consistent filtration performance, these filters offer low pressure drop, long life, higher contaminant-holding capacity, excellent particle removal efficiency, and high dirt-holding capacity
Rigid resin bonding structure:
The rigid resin bonding structure is designed to prevent the unloading of materials in situations with high pressure, ensuring stability even when there are notable pressure fluctuations
Broad filtration range:
Available in a wide range of removal efficiencies from 1 to 150 microns for diverse applications.
Spirally wrapped structure:
The outer spiral wrapping captures large particles and agglomerates, while the inner layers manage particle removal at the specified size. This external wrapping increases surface area and eliminates loose debris caused by machined products.
Phenolic Resin Bonded Filter Cartridge Applications
Paints and Coatings:
Varnishes, Shellacs, Lacquers, Automotive Paints, Paints & Related Products, Industrial Coatings.
Inks:
Printing Ink, UV Curing Ink, Conductive Ink, Color Paste, Liquid Dye, Can Coating, Printing & Coatings, UV Curing Ink, Can Coating, etc.
Emulsions:
Various Emulsions.
Resins:
Epoxies.
Organic Solvents:
Adhesives, Sealants, Plasticizers, etc.
Lubrication & Coolants:
Hydraulic Fluids, Lubricating Oils, Greases, Machine Coolants, Antifreeze, Coolants, Silicones, etc.
Various Chemicals:
Strong Oxidizing Acids (Industrial), Amine & Glycol (Oil & Gas Processing), Pesticides, Fertilizers.
Process Water:
Desalination (Industrial), Process Cooling Water (Industrial), etc.
General Manufacture Processes:
Pre-filtration and Polishing, Mechanical Wastewater Treatment, Plating, Completion Fluids, Hydrocarbon Streams, Refineries, Fuel Oils, Crude Oils, Animal Oils, etc.
** The PRB series cartridges are not suitable for use in food, beverage, or pharmaceutical applications.
Operating Parameters
| Maximum operating temperature | 120° |
| Maximum pressure differential | 4.3bar. |
| Replace within pressure range | 2.5 bar |
Dimensions
| Length | 10”,20” , 30” ,40” |
| Inner diameter | 28.5±0.5mm |
| Outer diameter | 63±1.5mm |
Materials of Construction
Specially made long fibers, phenolic resin
Cartridge Configurations
The standard WRB series filter cartridges come in various lengths, catering to a wide range of cartridge housings from major manufacturers (refer to the ordering guide for details).
Filter Performance
The WRB series products integrate surface and depth filtration principles within a single cartridge, delivering extended filter service life, increased particle removal efficiency, and optimal flow characteristics.
WRB Series cartridges – Ordering guide
|
Range |
Surface type |
Cartridge length |
Designationgrade -rating |
|
EP=ECOPURE |
G=GOOVED |
1=9.75″ (24.77cm) |
A=1μm |
|
|
W=WRAPPED |
2=10″ (25.40cm) |
B=5μm |
|
|
|
3=19.5″ (49.53cm) |
C=10μm |
|
|
|
4=20″ (50.80cm) |
D=25μm |
|
|
|
5=29.25″ (74.26cm) |
E=50μm |
|
|
|
6=30″ (76.20cm) |
F=75μm |
|
|
|
7=39″ (99.06cm) |
G=100μm |
|
|
|
8=40″ (101.60cm) |
H=125μm |
|
|
|
|
I=150μm |
|
|
|
|
G=2001μm |
|
|
|
|
K=400μm |
